Fiberall wall and rack mounted Patch & Splice Enclosures are the best in class for quality and value.
Please select the links below for more details.
Wall Mounted Patch & Splice Enclosures
Fiberall offers a variety of Wall-Mounted Patch & Splice Enclosures (DW-series). The DW-series enclosures are available empty or pre-loaded
with the following:
Adapter Panels (6, 8, or 12-Fiber; various interlaces)
Pigtails (Ready for Splicing)
Stubbed (with Stranded, Ribbon or Loose Tube cable)
Please click on products listed below for more details.
Door equipped with key lock.
Both doors swing open a full 180 to optimize cabling access.
Bend Radius Controllers are mounted so as to maintain optimal bend radius for cable slack, whether patching or splicing.
Cable clips are included on the sides of the storage loop to facilitate cable containment.
Dust-proof grommets are included for all four U-shaped cable openings.
Available cable tie-off bracket provides additional cable retention options.
Splice tray bracket raises level of trays for ease of access.

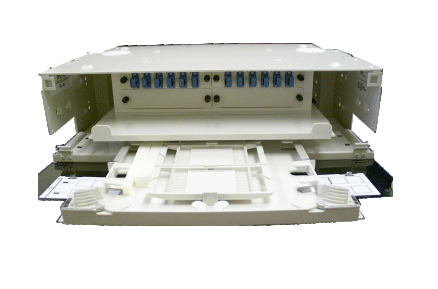

Rack-Mounted Patch & Splice Enclosures
FIBERALL offers a variety of Rack-Mounted Patch & Splice Enclosures (DR-series).
The DR- series enclosures are available empty or pre-loaded with the following:
Adapter Panels (6, 8, or 12-Fiber; various interfaces)
Pigtails (Ready for Splicing)
Stubbed (with Stranded, Ribbon or Loose Tube cable)
Enclosures accommodate a variety of Adapter Panels and/or Splitter/WDM/DWDM/Connector Modules.
Adapter Panels are available with virtually any connector interface.. SC, FC, LC, ST, MT-RJ, etc.
Pre-loaded Patch Panels available.
Can be used for 19” and 23” Racks.
Bend Radius Controllers are mounted so as to maintain optimal bend radius for cable
slack, whether patching or splicing.
Rack-Mounted Patch & Splice
Shelf Combination
The Fiber Optic Shelf Combination is used for a combinabon of splice and terminabon of outside plant cables.
Can be used for rackmount and wall-mount applications.
Combination shelf equipped wth:
Universal shelf mounting brackets for frame or wall mount.
Cable clamp brackets for termnaton of OSP cabes.
Blank labels for identifying
fiber terminations.
Splice tray housng.
Hinged front mountng panel for fiber terminations.
Combinaton Shelf availabe wfth SC, FC, ST, LC and MT-RJ type adapter panels... in 6, 8, and 12-fiber options.
Each organizer can
accommodate up to 48 fusion splices.
For ordering information please contact Fiberall.
Pre-terminated shelves from Fiberall offer fast instaflation time and factory guaranteed specifications by supplying a termination shelf complete with a stub of cable pre-terminated onto pre-installed ports.
Can be used for rack-mount and wall-mount applications.
Please click on products listed below for more details.
Preterminated Shelf (Front)
Features:
Adapter Panels are available with virtually any connector interface...SC, FC, LC, ST, MTRJ, etc.
Pre-Connectorized Stubs are polished to meet UPC (55 dB mm.) or APC (65 dB min.). Retum Loss performance and are optically tested 100%.
Stubbed enclosures are shipped within the center of the cable reel for easy mounting and payout.
Fiberall will pre-terminate any type of enclosure according to customer specification
Available with Stranded, Loose Tube or Ribbon Cables.
Available with pulling grip attached to the cable.
Features:
Metal ion doped fiber
Simple and reliable structure
Input power endurance - 200mW
Low PDL
Telcordia compliant
For ordering information please contact Fiberall.
Modules
FIBERALL offers a variety of modules for use in the different type of enclosures. The modules may be equipped with 900mic single4iber or ribbon- fiber pigtails for splicing. Modules are available with a variety of connector types.
Fiber Modules are available with Splitter or WDM components housed inside a
protective module. Splitters are available in different split ratios and configurations.
WDM’s are available in standard isolation or high-isolation. Modules available with
SC, FC, ST or LC connector types , featuring UPC or APC performance. Meets
Telcordia GR1209-CORE specifications.
Please click on products listed below for more details.
For ordering information please contact Fiberall.
288F0SC - 288 Port Wall-Mounted
Splice Closure
Description:
The 288F0SC is an economical solution to the increasing demand for space-efficient, multi-purpose fiber optic closures. When installed, the unit allows users to pull cable directly into the spacious interior via one or more of the eight entry ports. Ports are located on all four sides, each having a cover plate with a removable plug to access a 2’ diameter hole. The entry port cover plate also has two 1/2” diameter holes for ground wire feeds. If desired, the entire plate can be removed to access a 4” diameter hole.
The FOSC will house up to 10 meters of OSP cable slack, eliminating the need to store slack in a manhole or on a wall adjacent to the closure. Providing OSP cable storage within the unit not only protects the cable from unwanted physical damage, it effectively saves premium space on a wall or in a manhole.
Once in the closure, OSP cable may be stripped to allow storage of up to 10 meters
of buffer tube slack. OSP cable slack and buffer tube slack are segregated and routed
via internal brackets and wiring clips. The separation allows clear access to both splice
trays and buffertube slack. The standard FOSC allows up to 12 FIBERALL standard splice trays or 12 high-density splice trays, allowing users to splice up to 288 fibers. The high density OCS
will accomodate 18 trays or up to 432 splices.
Please select links below for more details.
Lightweight aluminum construction for easy installation.
Durable powder coat finish.
Pad-lockable, lift-off, field-reversable door.
Document holder.
Wall or Unistrut-mountable.
Stores up to 10 meters of OSP cable slack and 10 meters of buffer tube slack.
2-inch and 4-inch conduit entry ports on all sides.
Can be configured as a cable pull box and/or cable splice closure.
Clamping and grounding for up to 4 incoming cables.
Optional workshelf.
For ordering information please contact Fiberall.
Adaptor Panels
All Enclosures are designed to accommodate FiberAll Adapter Panels. These Panels are manufactured using durable powder-coated aluminum alloy. Color is Office White. Attachment to enclosures is achieved via simple, reliable snap-latch mechanism. Available with all the popular connector interfaces...SC, FC, ST, LC, and MT-RJ....in 6, 8, and 12-fiber options.
Please click on products listed below for more details.
For ordering information please contact Fiberall.
Splice Trays
Fiberall’s splice trays use proven design and fiber organization technology to provide optimum physical protection for fusion and mechanical splice methods. The trays are engineered for use with both loose tube and tight-buffered optical cable designs. Their size prevents induced attenuation due to fiber bending.
Applications:
For use with indoor or outdoor splice hardware.
Protects and manages fibers and fiber splices
Used at field splice, transition splice and end splice locations.
Fiberall offers the industry’s highest quality fusion splice sleeves. Standard sleeves are constructed with a stainless steel strength member, polyolefin copolymer inner tube and a polyolefin outer tube. Cut lengths are precise and all ends are free from burrs and sharp edges. The entire assembly is heat bonded to ensure tubes maintain perfect alignment during shipping, handling and shrinking.
Standard style sleeves are available in different lengths, colors and diameters. They are also available with a dielectric strength member. All style variations are constructed to the same standards with the same core materials.
Features:
Meets Telcordia GR-1 380
Heat bonded assembly
Outer tube meets MIL-l-2305315 Class 2
Choice of lengths
Choice of colors
Choice of diameters
Dielectric sleeves
Ribbon fiber sleeves
Features:
Foam construction
Mini and micro versions Indoor and outdoor versions
Peel back adhesive
For ordering information please contact Fiberall.
